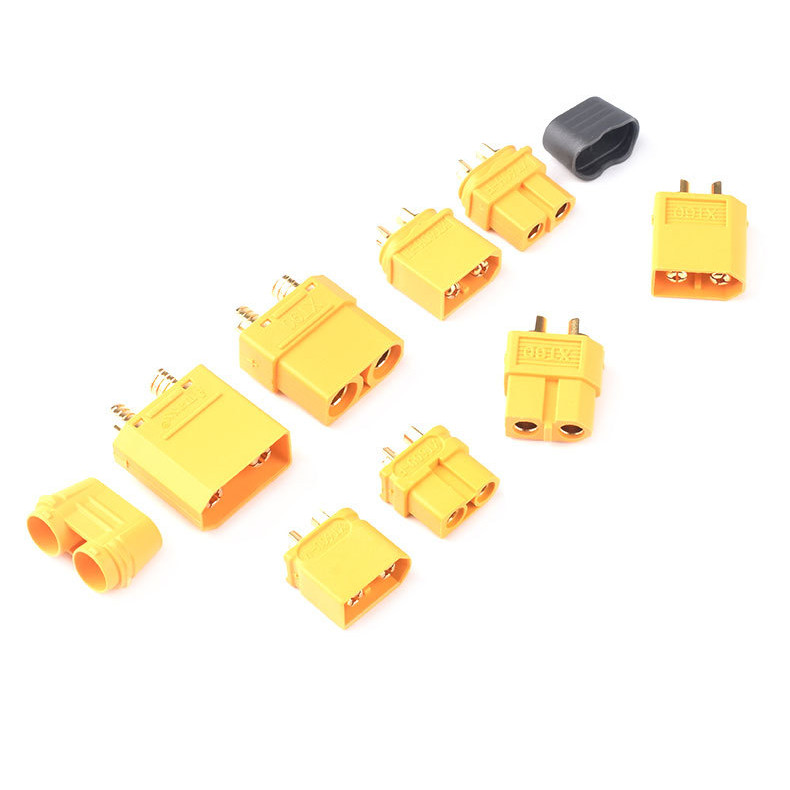

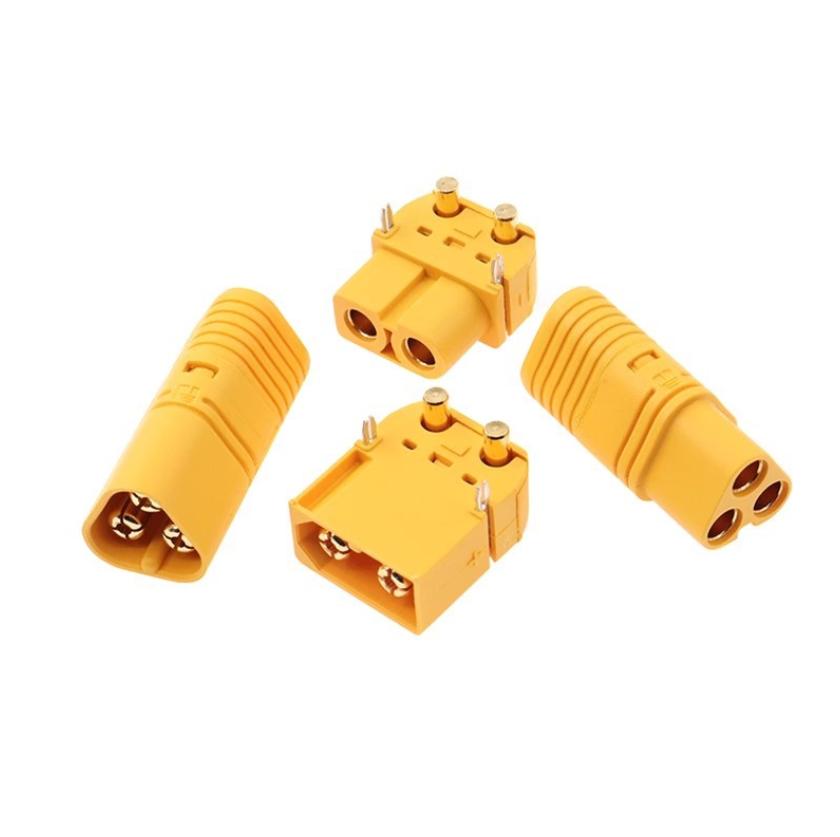

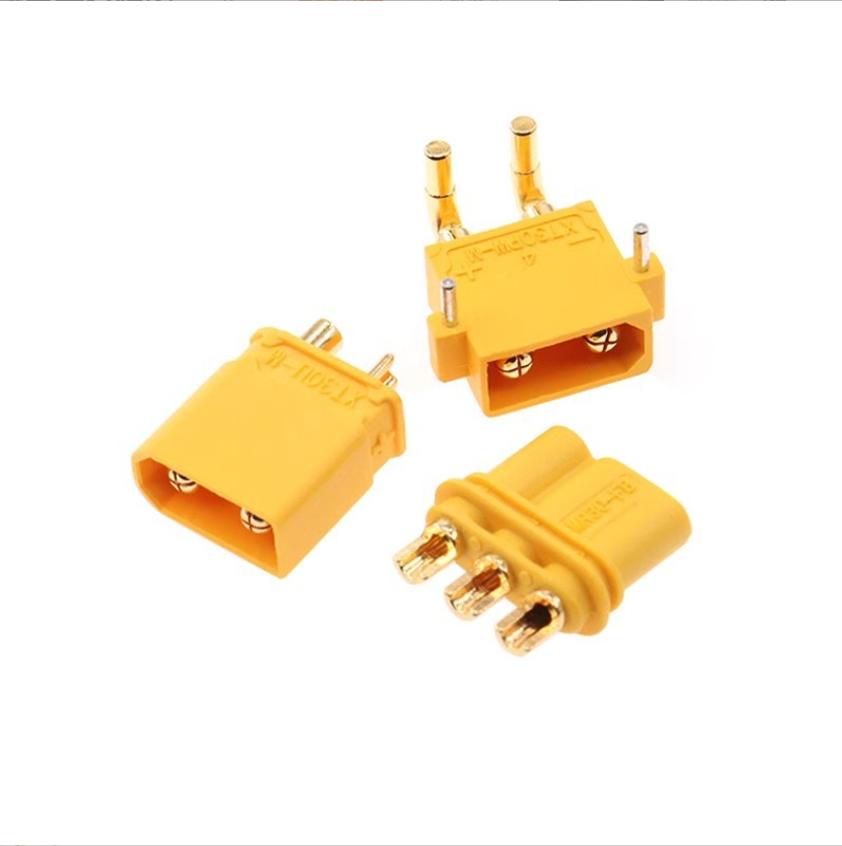

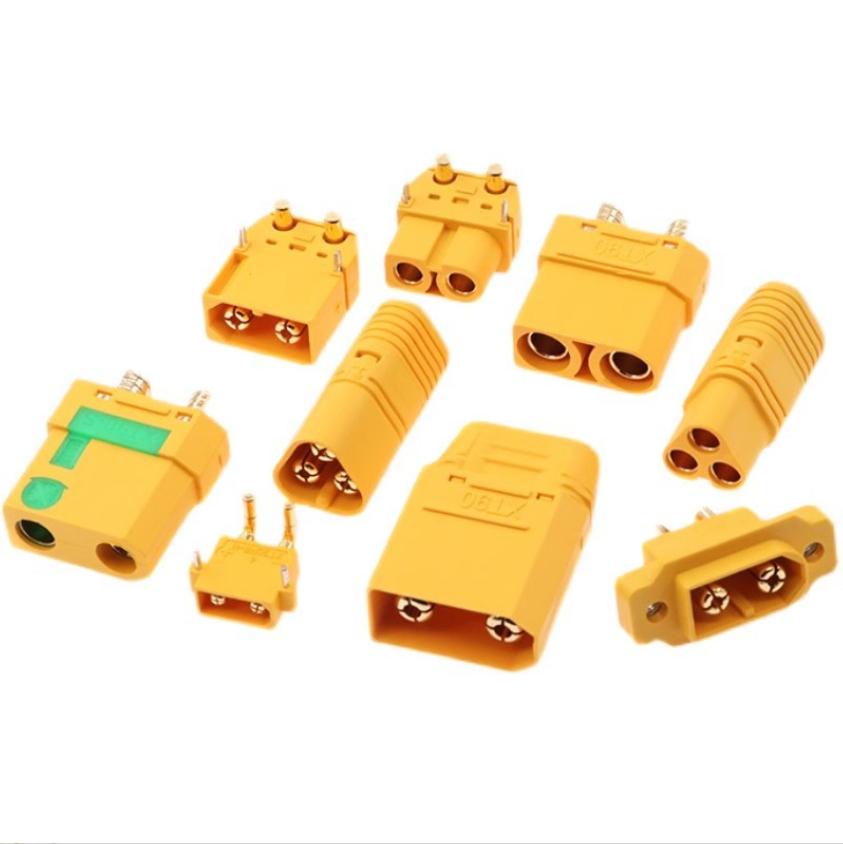

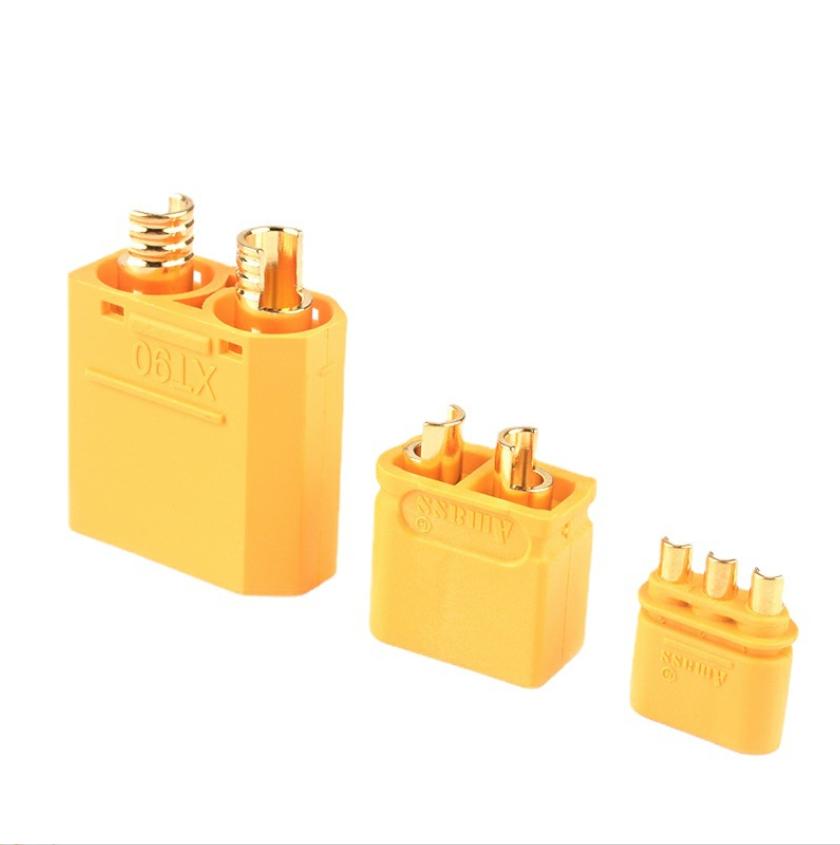

Quality Amass original XT30 UXT60 XT60H XT90 MR30 connector lithium battery high current aviation plug

The parameters:

Withstand voltage DC 500V

Rated current 30A

Contact resistance 0.40m2

Insulation resistance 2000MQ

Instantaneous current 60A

Temperature rise 30A 4h<60 ° C

Creepage distance 1.2mm

Operating temperature -20 ° C~120C

Metal component H59-1

Plated with durable gold 0.03 μ m

PA6 flame retardant material for the shell

Insertion force: 3.5kg-6.5kg

Pull out force of 3.5kg-6.5kg

Flame retardant grade UL94-V0

Protection level IP40

Salt spray for 48 hours

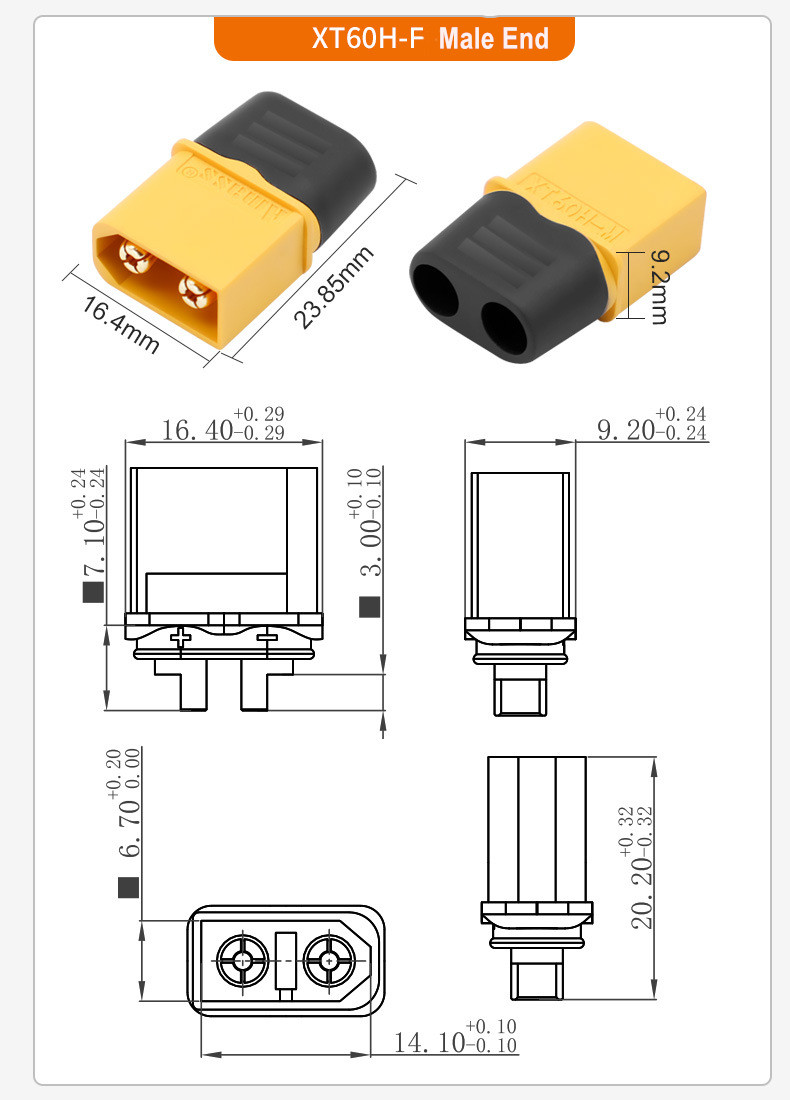

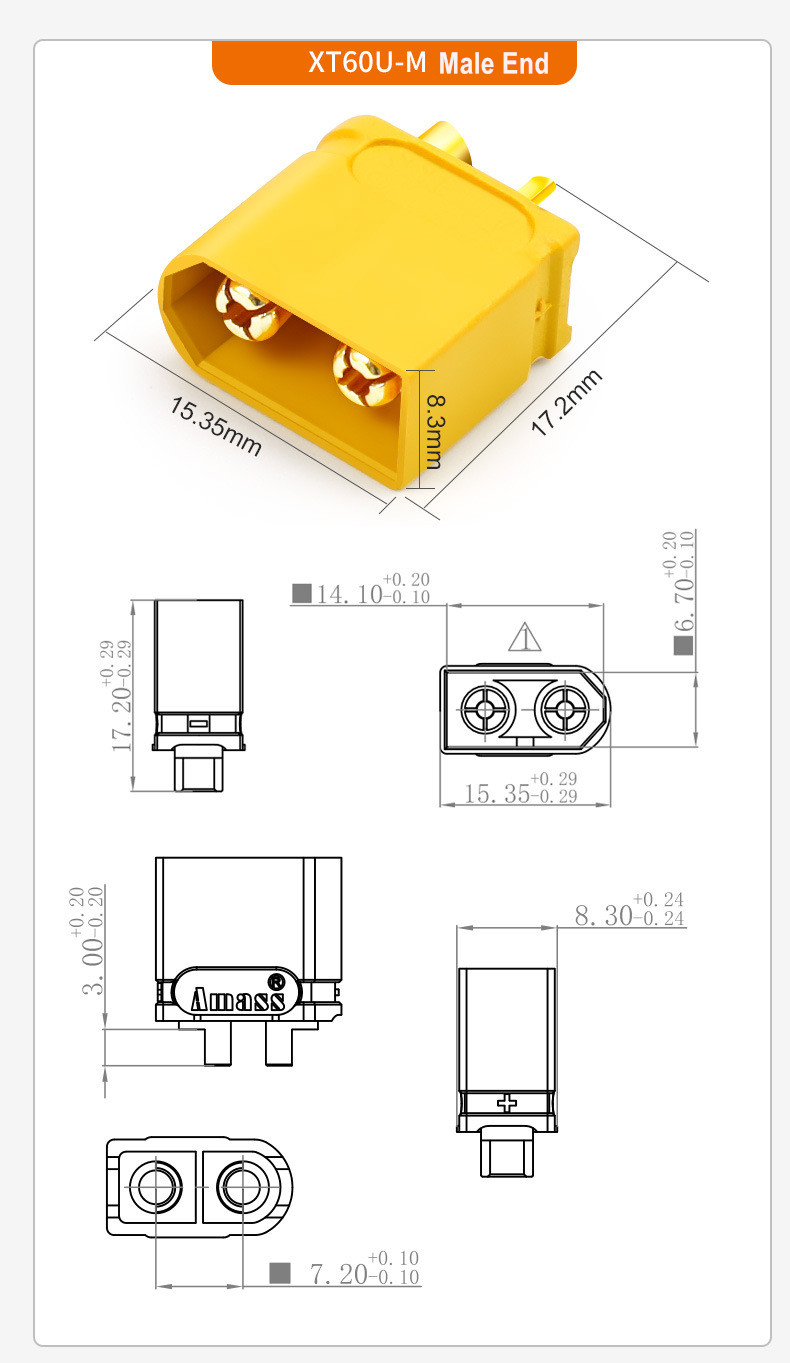

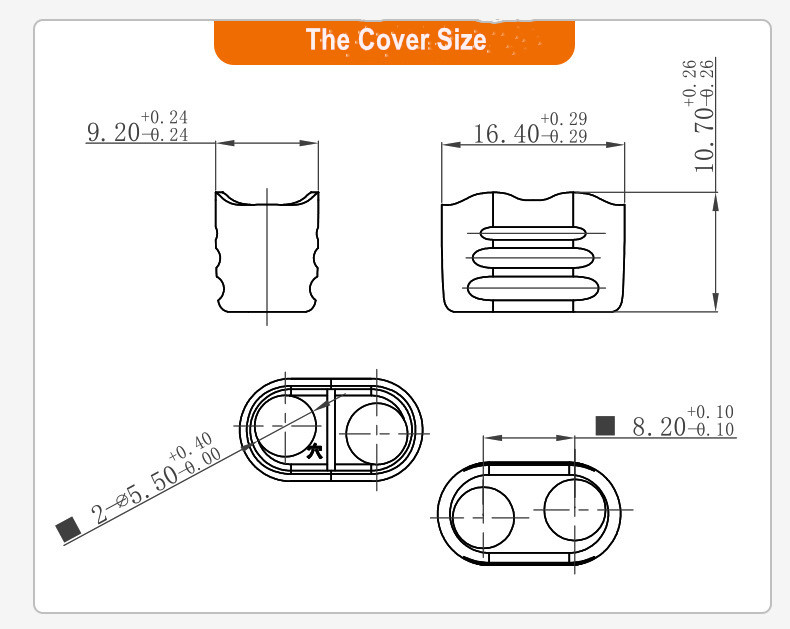

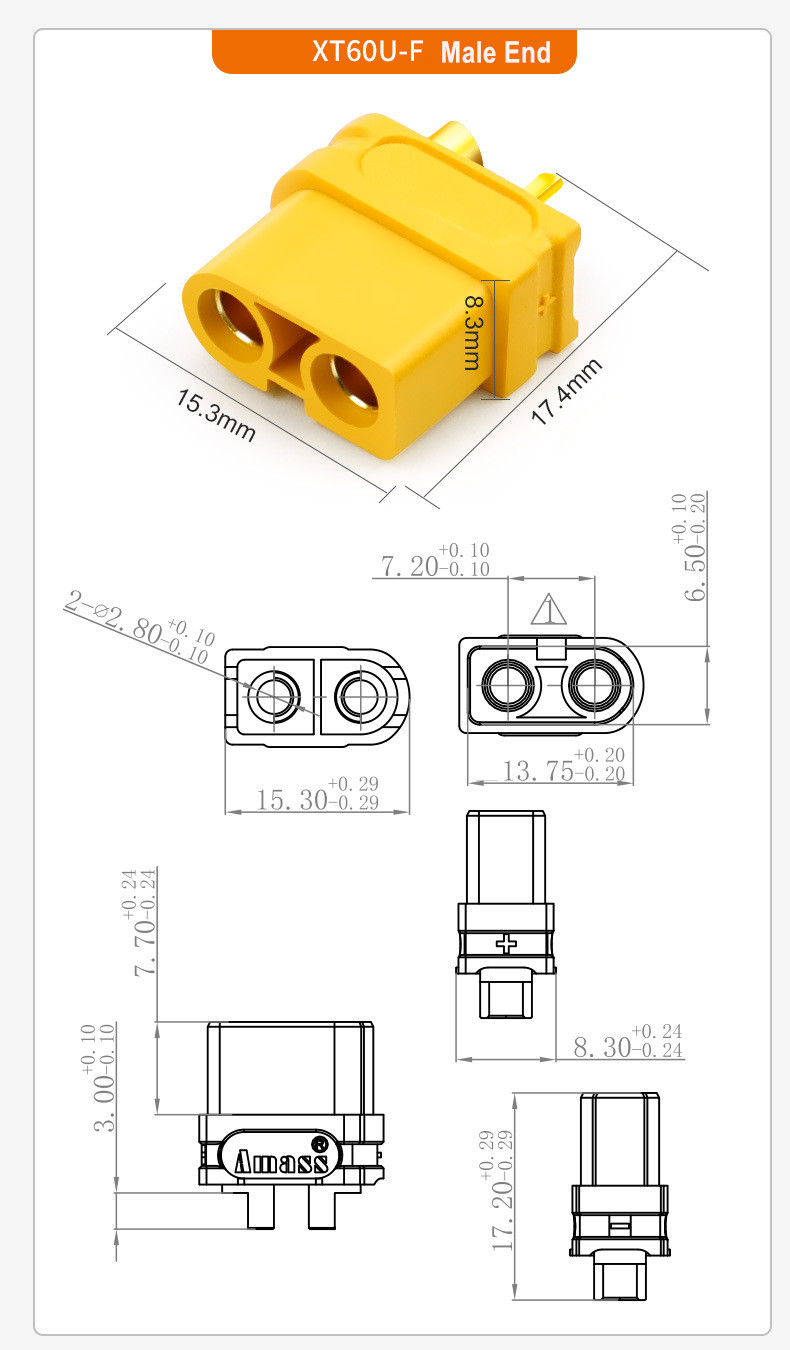

The design drawing:

Other models, freely inquiry us
