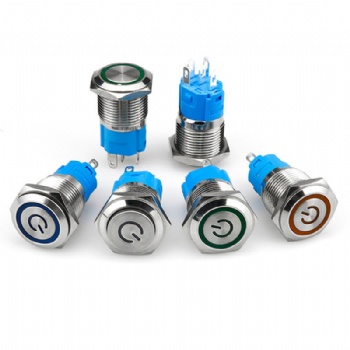

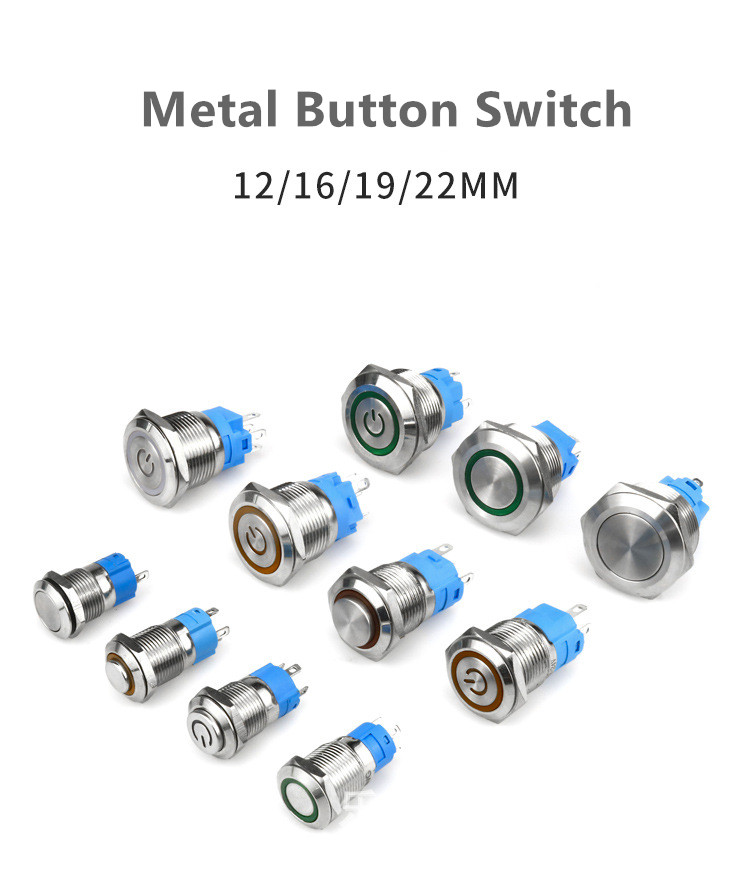

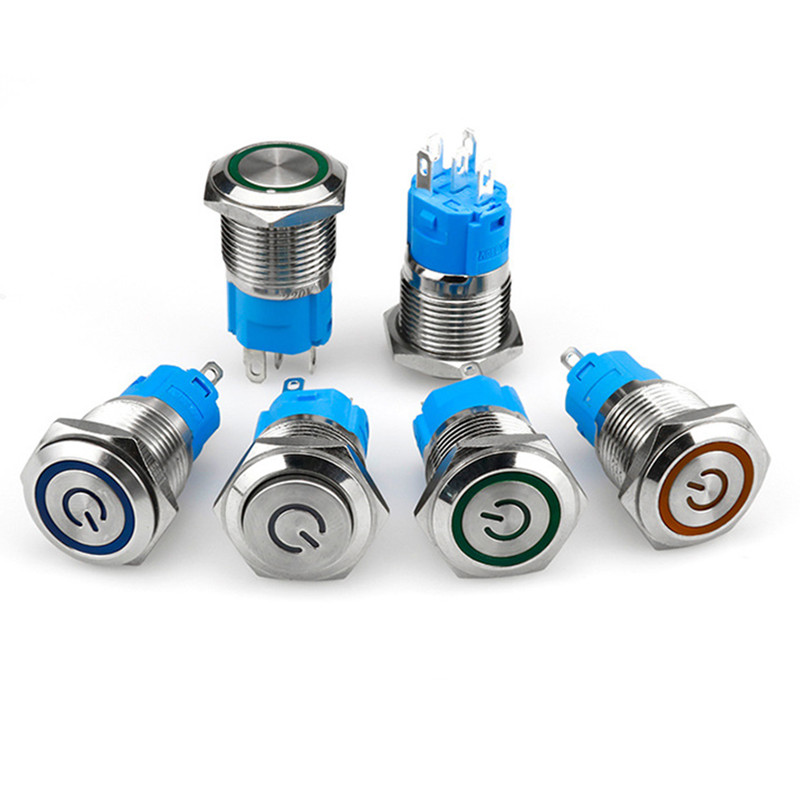

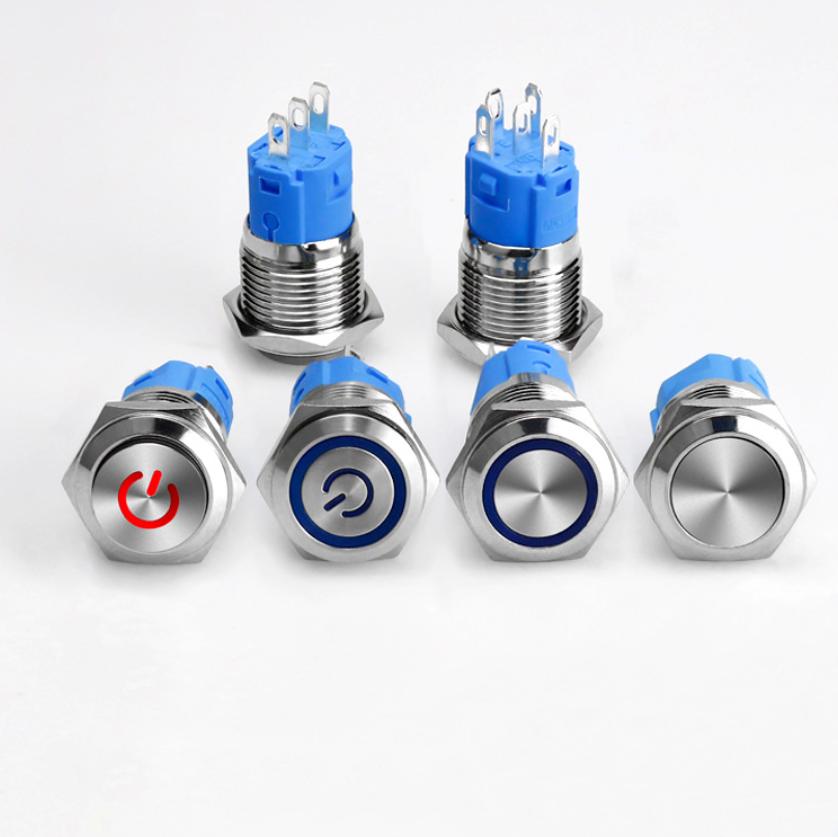

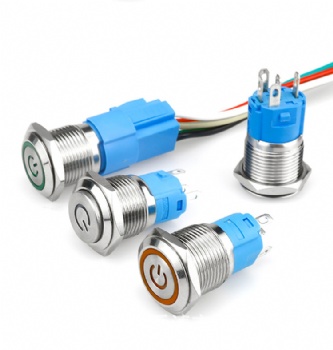

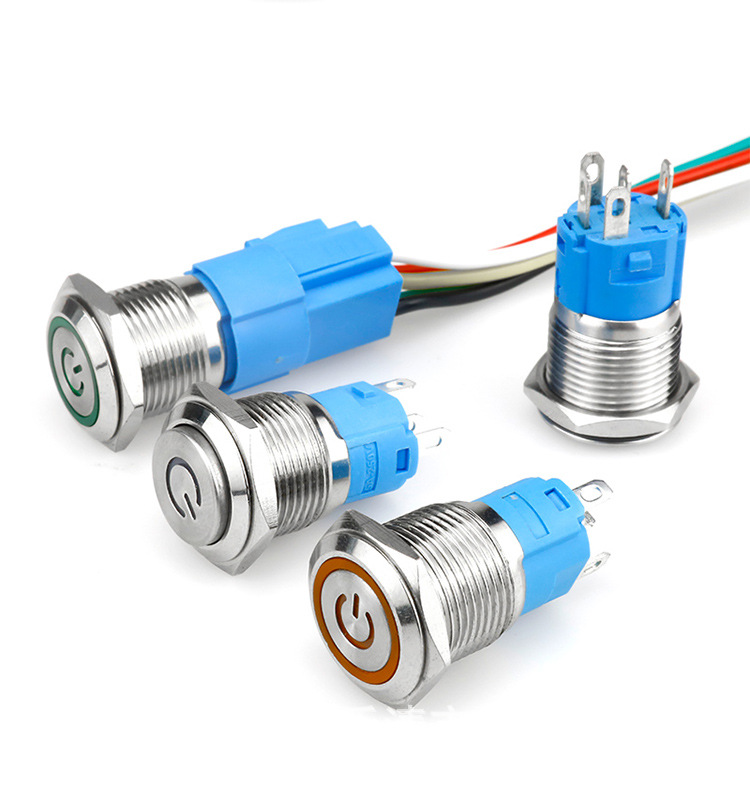

Name: Metal Button Switch
Operation type: self-locking/self resetting

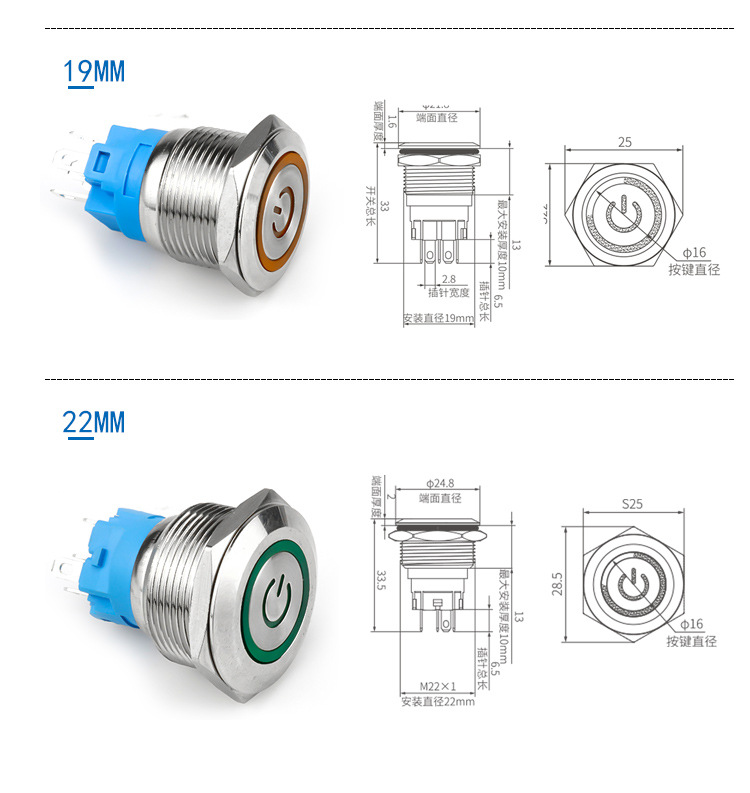

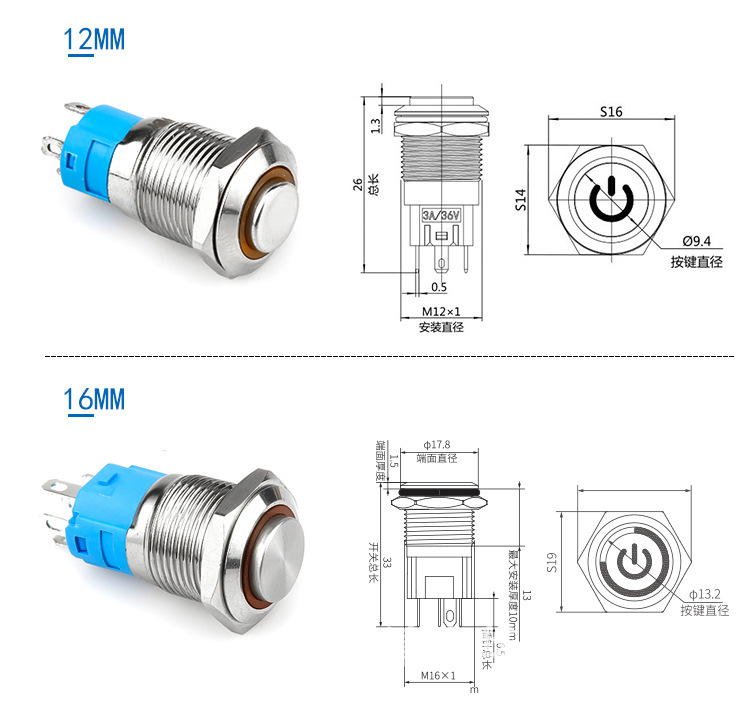

Installation diameter: 8/10/12/16/19/22MM
Material: Copper Nickel Plated/Stainless Steel
Head shape: flat head/high head
Lighting form: circular electric beacon/electric beacon/circular
Contact form: 1 open 1 close/normally open/normally closed
Wiring method: Pin/Wiring
Electrical lifespan: over 200000 cycles
Rated voltage: 3-220V
Rated current: 2A
Button form: with light/without light
LED light colors: red/yellow/blue/green/white
The Features of our Metal Button Switch:
Support large current, max 20A current.
Copper button, durable.
Silver contact, good conductivity.
Can add waterproof design.
Anti-fire material.
High light LED.
Button Tips
Self locking/self resetting button
self-locking: After pressing, the button will sink down to lock, and only when pressed again will it pop up.
Self reset: After pressing, the leave button immediately pops up.
Normally open/normally closed contacts
Normally open: normally in a disconnected state, press to connect
Normally closed: normally in the connected state, press to disconnect
